Engineering a Heated Emergency Safety Station for an Extreme Cold Hazardous Area Project

Delivering an Integrated Emergency Shower & Eyewash Solution for Industrial Facilities Operating Down to -45°C

Project Overview

Industrial facilities operating in severe cold climates require emergency safety systems that remain fully functional throughout the year, even under extreme environmental conditions.

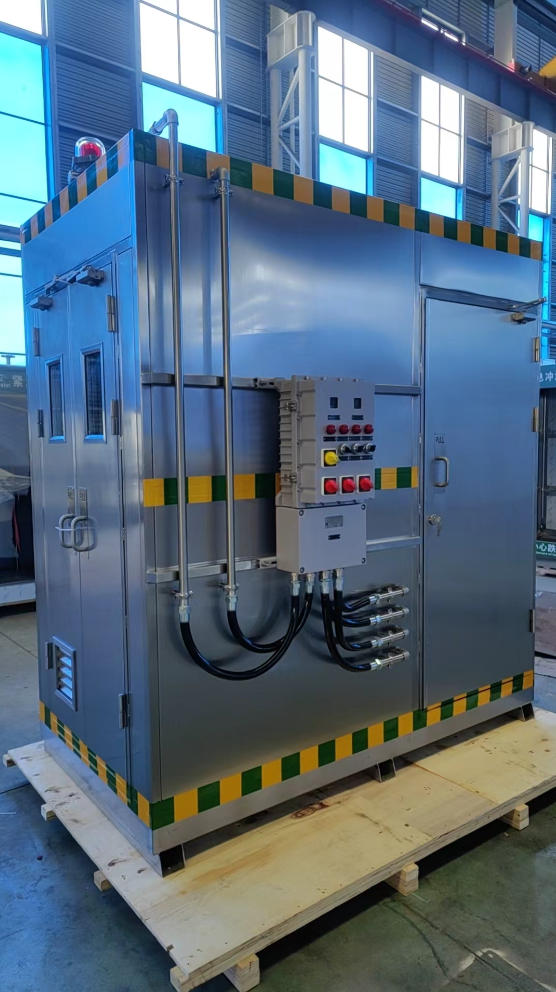

For this project, DAO supplied a fully integrated heated emergency safety station designed for installation in a hazardous industrial area where ambient temperatures can reach -45°C. The system was engineered to provide a reliable source of tempered flushing water while meeting the project’s technical specifications, hazardous-area requirements and engineering documentation procedures.

Rather than supplying a standalone emergency shower, DAO delivered a complete engineered safety solution integrating water storage, heating, insulation, pumping, monitoring and alarm functions into one self-contained emergency response system.

Project Summary

Engineering Challenges

This project presented several engineering challenges beyond conventional emergency shower applications.

The emergency station was required to:

• Operate reliably under ambient temperatures down to -45°C
• Provide tempered flushing water in accordance with ANSI Z358.1
• Function independently without a permanent pressurized water supply
• Prevent freezing of stored water, piping and equipment
• Integrate explosion-protected electrical components suitable for hazardous areas
• Support continuous emergency operation under harsh outdoor conditions
• Meet the EPC contractor’s engineering review, compliance verification and technical clarification requirements

The project therefore required an integrated engineering solution rather than a standard emergency shower product.

DAO Engineering Solution

DAO developed a complete heated emergency safety station combining emergency response equipment with an independent water supply and intelligent environmental control system.

Integrated Water Supply System

A 1500-litre insulated water tank provides an independent source of flushing water where no permanent water supply is available.

The storage capacity was engineered to support the continuous flushing duration required by ANSI Z358.1 while ensuring reliable operation during emergency situations.

Intelligent Temperature Management

Maintaining safe flushing water temperature is critical for emergency response.

The system integrates:

• Electric water heating
• Automatic temperature monitoring
• Thermostatic control
• Insulated water storage

Water temperature is maintained within a preset operating range, typically 20°C–30°C, ensuring tempered water is available whenever the emergency shower or eyewash is activated.

Extreme Cold Protection

To ensure reliable operation in Arctic-type environments, the complete station incorporates:

• Double-wall insulated enclosure
• High-density polyurethane foam (PUF) insulation
• Internal enclosure heating
• Thermal monitoring
• Freeze protection for both equipment and stored water

The complete system is engineered for continuous outdoor operation between -45°C and +40°C.

Engineered Pumping System

An explosion-proof vertical pipeline pump supplies water directly from the insulated storage tank to both the emergency shower and eyewash equipment.

The pumping system is designed to provide the flow and pressure required for emergency operation while maintaining system reliability under severe environmental conditions.

Integrated Safety Monitoring

Because the station operates as an enclosed emergency safety unit, multiple monitoring functions are incorporated, including:

• Internal LED lighting
• Audible and visual alarm system
• Water level indication
• Temperature monitoring
• Heater operation monitoring

These functions help improve emergency response while supporting routine inspection and preventive maintenance.

Engineering Compliance Support

In addition to equipment manufacturing, DAO supported the EPC procurement process through engineering documentation and technical clarification.

The project involved multiple rounds of engineering review covering:

• Compliance with ANSI Z358.1
• Hazardous-area instrumentation requirements
• Low-temperature equipment suitability
• Material selection and corrosion resistance
• Pressure regulating components
• Alarm and monitoring interfaces
• Factory inspection procedures
• Instrument calibration requirements
• Vendor compliance confirmation
• Technical clarification responses

This engineering support helped the EPC contractor verify compliance before manufacturing and shipment.

Quality Assurance & Documentation

Prior to shipment, DAO completed comprehensive factory inspection and prepared a complete documentation package, including:

• Factory Acceptance Test (FAT) reports
• Inspection records
• Instrument calibration certificates
• Technical data sheets
• General arrangement drawings
• Compliance confirmation documents
• Packing documentation
• Export documentation

This documentation package supported project quality control and facilitated engineering review before delivery.

Project Results

DAO successfully completed the engineering, manufacturing, inspection and documentation phases of the project before shipment.

The delivered system provided:

• Independent emergency water supply
• Heated tempered flushing water
• Reliable operation in -45°C environments
• Integrated alarm and monitoring functions
• Factory-tested performance
• Complete engineering documentation package

By integrating product engineering with documentation, technical clarification and quality assurance, DAO supported the EPC contractor in delivering a compliant emergency safety system for one of the project’s most demanding operating environments.

Engineering Capabilities Demonstrated

This project demonstrates DAO’s capability to support complex EPC projects requiring both engineered equipment and comprehensive technical support.

The project highlights DAO’s expertise in:

• Heated Emergency Shower & Eyewash Systems
• Extreme Cold Climate Engineering
• Independent Water Storage Solutions
• Hazardous Area Applications
• ANSI Z358.1-Oriented Design
• Explosion-Proof Auxiliary Systems
• Engineering Documentation Packages
• Vendor Compliance Support
• Factory Acceptance Testing (FAT)
• Instrument Calibration Documentation
• Technical Clarification Management
• International EPC Project Delivery

Why EPC Contractors Choose DAO

Successful EPC projects require suppliers capable of delivering more than compliant products.

DAO supports international engineering projects by combining manufacturing expertise with engineering services throughout the project lifecycle.

Our support includes:

• Technical specification review
• Vendor compliance confirmation
• Engineering document preparation
• Technical clarification support
• Factory inspection and testing
• Calibration documentation
• Export logistics coordination
• Project communication throughout execution

This integrated approach enables EPC contractors to reduce technical risk, improve documentation efficiency and maintain project schedules while ensuring emergency safety systems comply with demanding industrial project requirements.
