Inserted Eyewash
Places where hazardous substances are splashed, such as chemicals, hazardous liquids, solids, and gases.
Pollution of the environment.
A place where burning may occur.
There are places where you need to install an eyewash but the space is very limited.
Please pay attention to the antifreeze work of pipelines when using in cold places.
304 / 316L stainless steel recessed eye wash is a stretch eye wash. The concealed design allows it to be stowed into the wall when not in use, without occupying any extra space. The surface can be polished or sandblasted as required. During the eyewash process, the integrated drainage tray can hold the drainage waste liquid, which is scientifically designed and durable.
DAAO QR-1

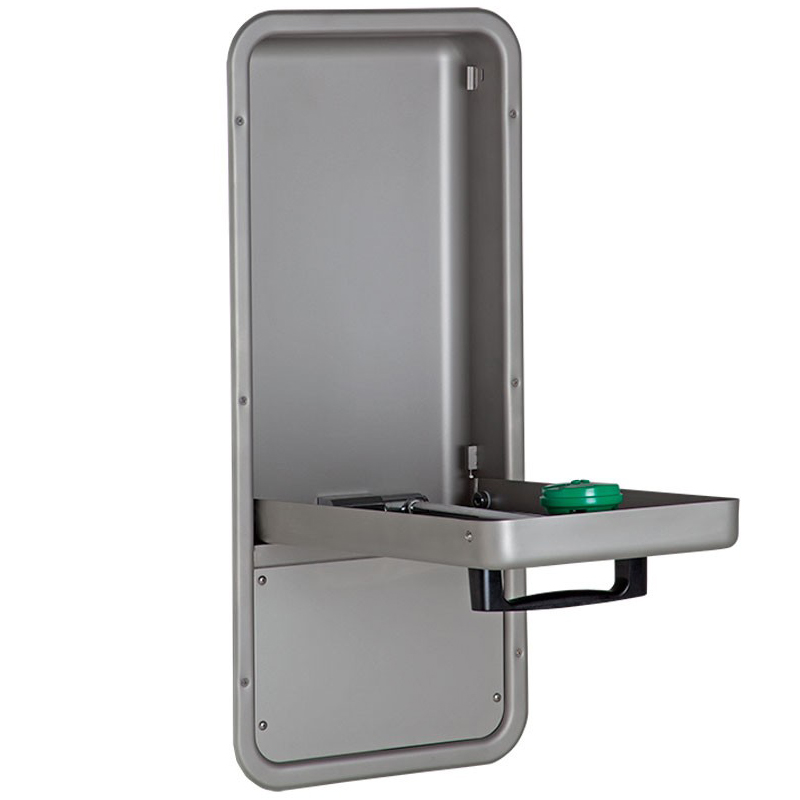

DAAO QR-1 Inserted Eye Wash Station
304 / 316L stainless steel embedded eye wash is a stretch eye wash. The concealed design allows it to be stowed into the wall when not in use, without occupying any extra space. The surface can be polished or sandblasted as required. During the eyewash process, the integrated drainage tray can hold the drainage waste liquid, which is scientifically designed and durable.
DAAO QR-2

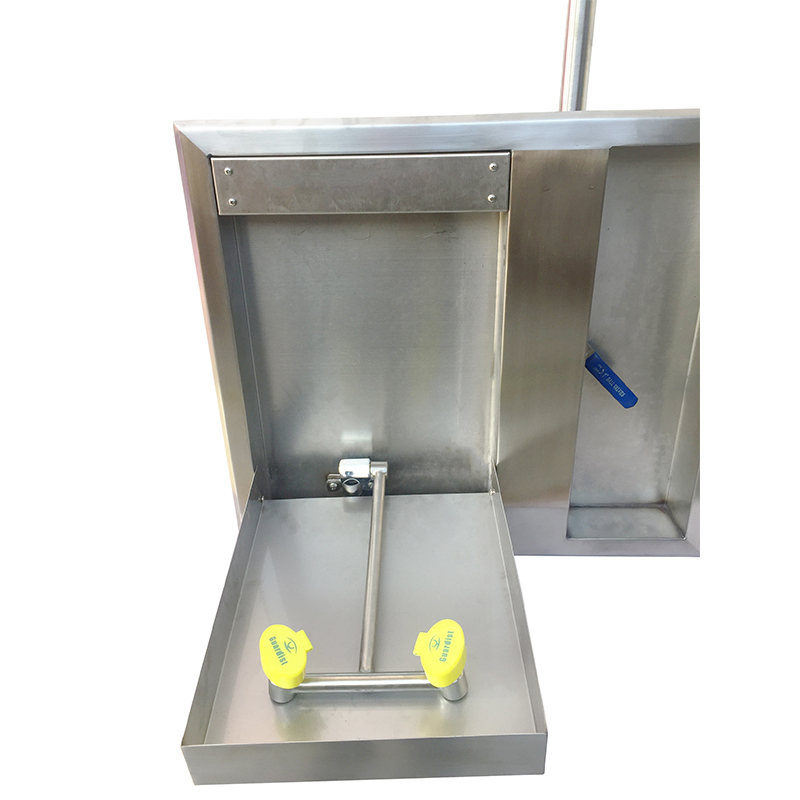

DAAO QR-2 Inserted Eye Wash Station
Specifications
- Material: stainless steel 304 (SS316L is optional)
- Certificate & Standard: ANSI Z 358.1-2014, EN15154.1/2:2006
- Pipe Wall Thickness: 2.5/3mm
- Function: eye washing, body showering, working pressure: 0.2MPa-0.6MPa
- Working environment temperature: 10 ° C -35° C
- Inlet size: NPT 1 1/4″
- Drain size: NPT 1 1/4″
- Shower Head diameter: 10”/ 26cm
- Eyewash flow rate: ≥11.4L/min
- Shower flow rate: ≥75.7L/min
