Laboratory Deck Mounted Emergency Eyewash

Laboratory bench mounted emergency eyewash can help you respond to lab accidents quickly and protect you from serious injuries of chemical exposure. The following are examples of laboratory bench mounted emergency eyewashes that we’ve made. If you have special needs, please contact us.

DAAO6692-A

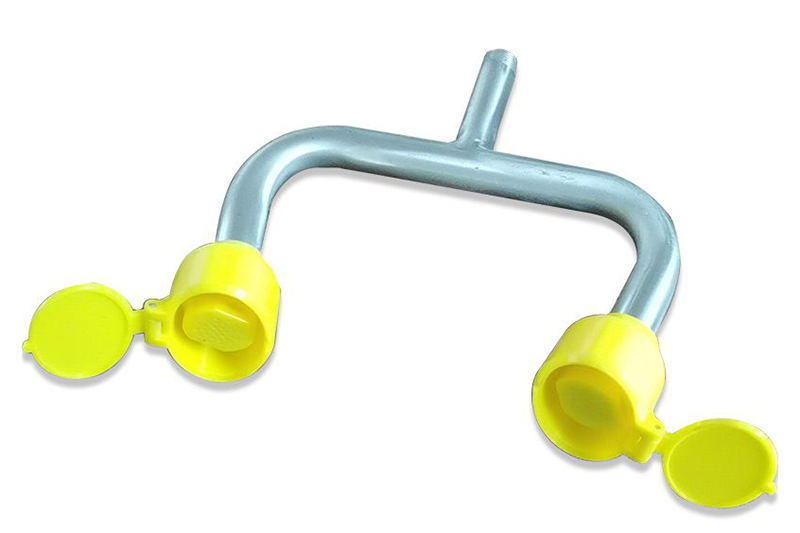

Bench Mounted Single Head Eyewash

Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006

  • Material: ABS
  • Water pressure: 0.2 MPa-0.6 MPa
  • Ambient temperature: 10℃-40℃
  • Inlet size: NPT 1/2”
  • Flow rate (eye/face wash): ≥11.4 L/min

DAAO6680-2

DAAO6680-2 Faucet Mounted Eyewash

Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006

  • Material: Copper
  • Water pressure: 0.2 MPa-0.6 MPa
  • Ambient temperature: 10℃-40℃
  • Inlet size: NPT 1/2”
  • Flow rate (eye/face wash): ≥11.4 L/min

DAAO6693-B

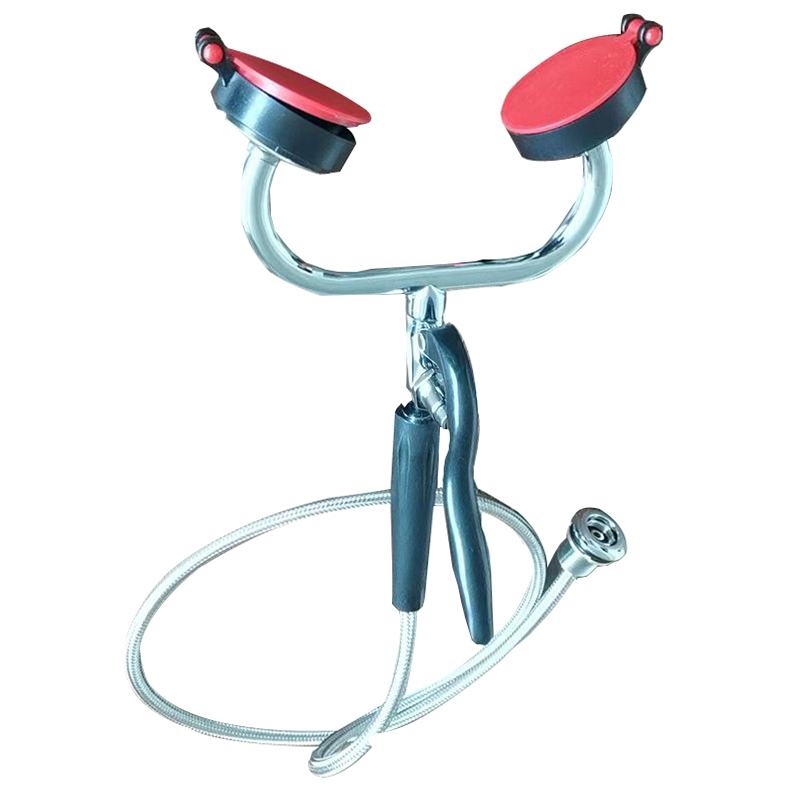

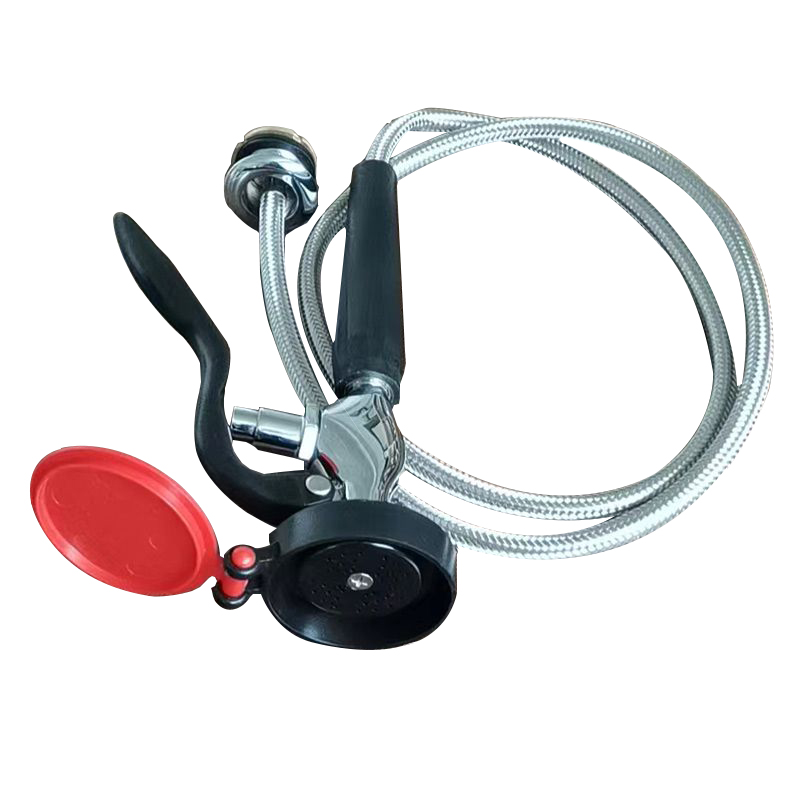

Deck Mounted Dual Head Eyewash / Drench Hose

Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006

  • Material: Copper
  • Main function: eye/ face wash
  • Water pressure: 0.2 MPa-0.6 MPa
  • Ambient temperature: 10℃-40℃
  • Inlet size: NPT 1/2”
  • Flow rate (eye/face wash): ≥11.4 L/min
  • Countertop installation, convenient for emergency use
  • Dust cover protecting the spray nozzle from dust
  • Water control valve made with copper, displaying aesthetic appearance
  • 1500mm stainless steel hose
  • First install the fixed tray on the countertop.
  • Then hold the water supply hose taper end, pass through the lower part of the fixed tray and connect it to the G1 ⁄ 2 “connector of the water control valve.
  • Connect the water supply hose G1 ⁄ 2 “locking end to the water supply pipe.

DAAO6693-A

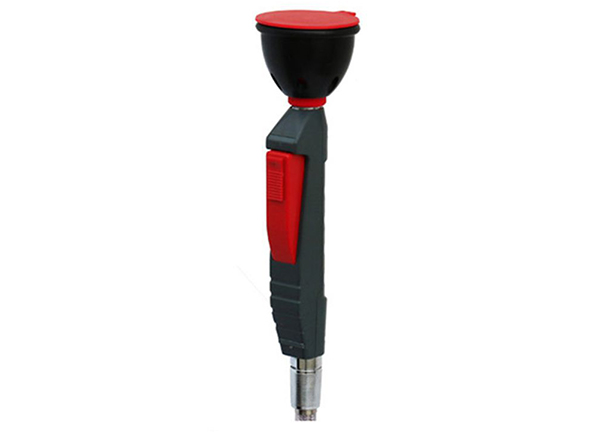

Single Head Emergency Drench Hose

Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006

  • Material: Copper
  • Compliance: ANSI Z 358.1-2014
  • Main function: eye/ face wash
  • Water pressure: 0.2 MPa-0.6 MPa
  • Ambient temperature: 10℃-40℃
  • Inlet size: NPT 1/2”
  • Flow rate (eye/face wash): ≥11.4 L/min

DAAO6690

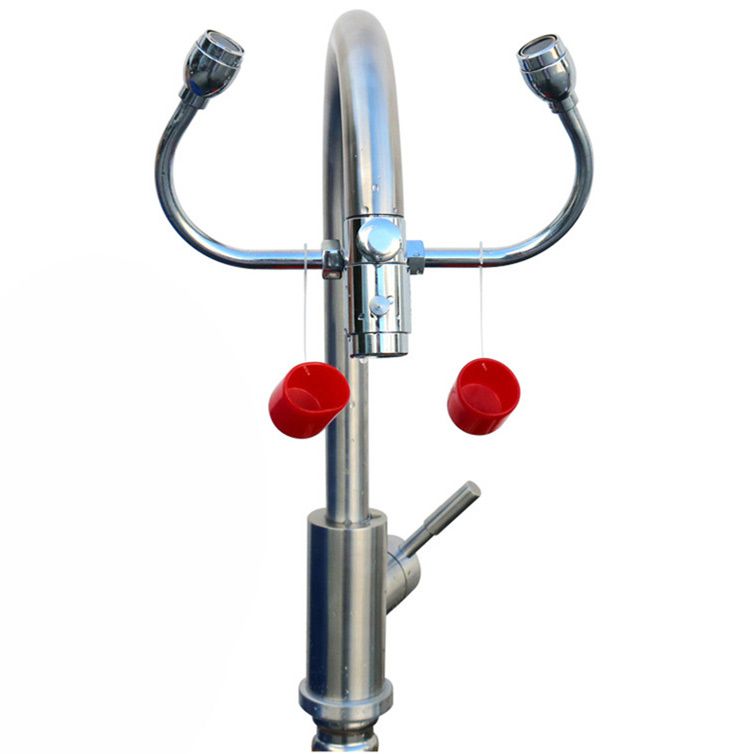

Deck Mounted Emergency Eyewash

Compliance: ANSI Z 358.1-2016, EN15154.1/2:2006

  • Material: 304/316L stainless steel + ABS
    Water pressure: 0.2 MPa-0.6 MPa
  • Ambient temperature: 10℃-40℃
  • Inlet size: NPT 1/2”
  • Flow rate (eye/face wash): ≥11.4 L/min
