Description

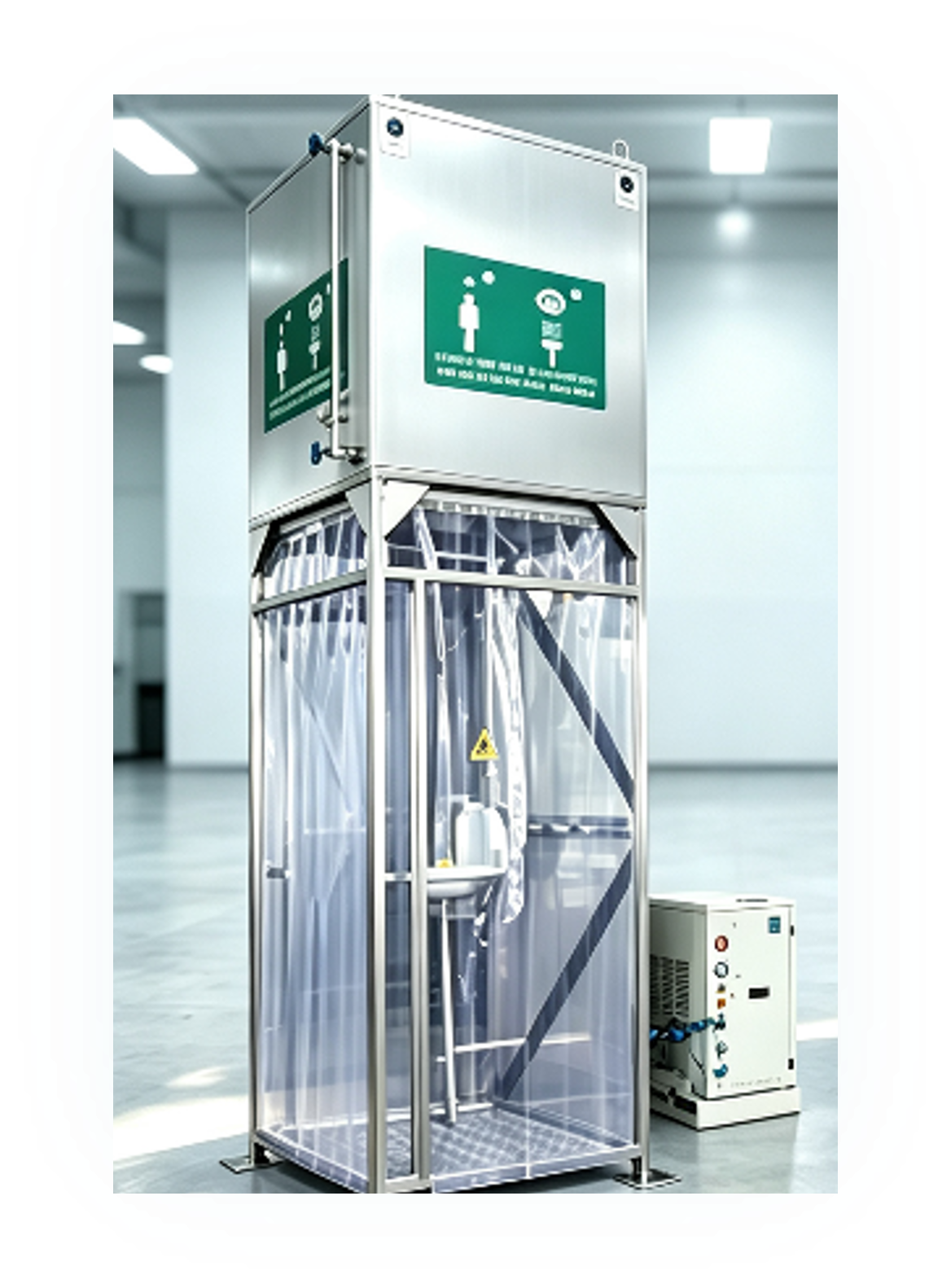

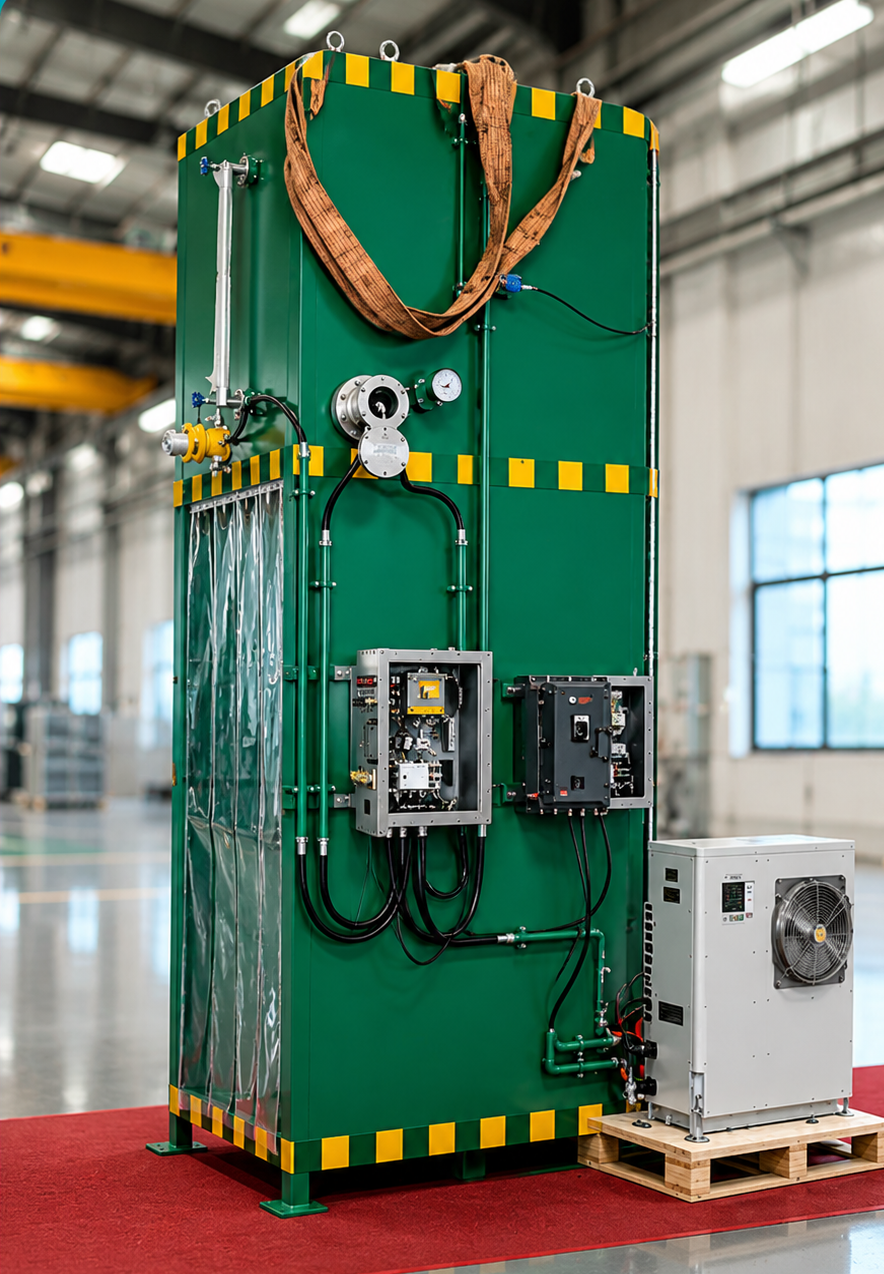

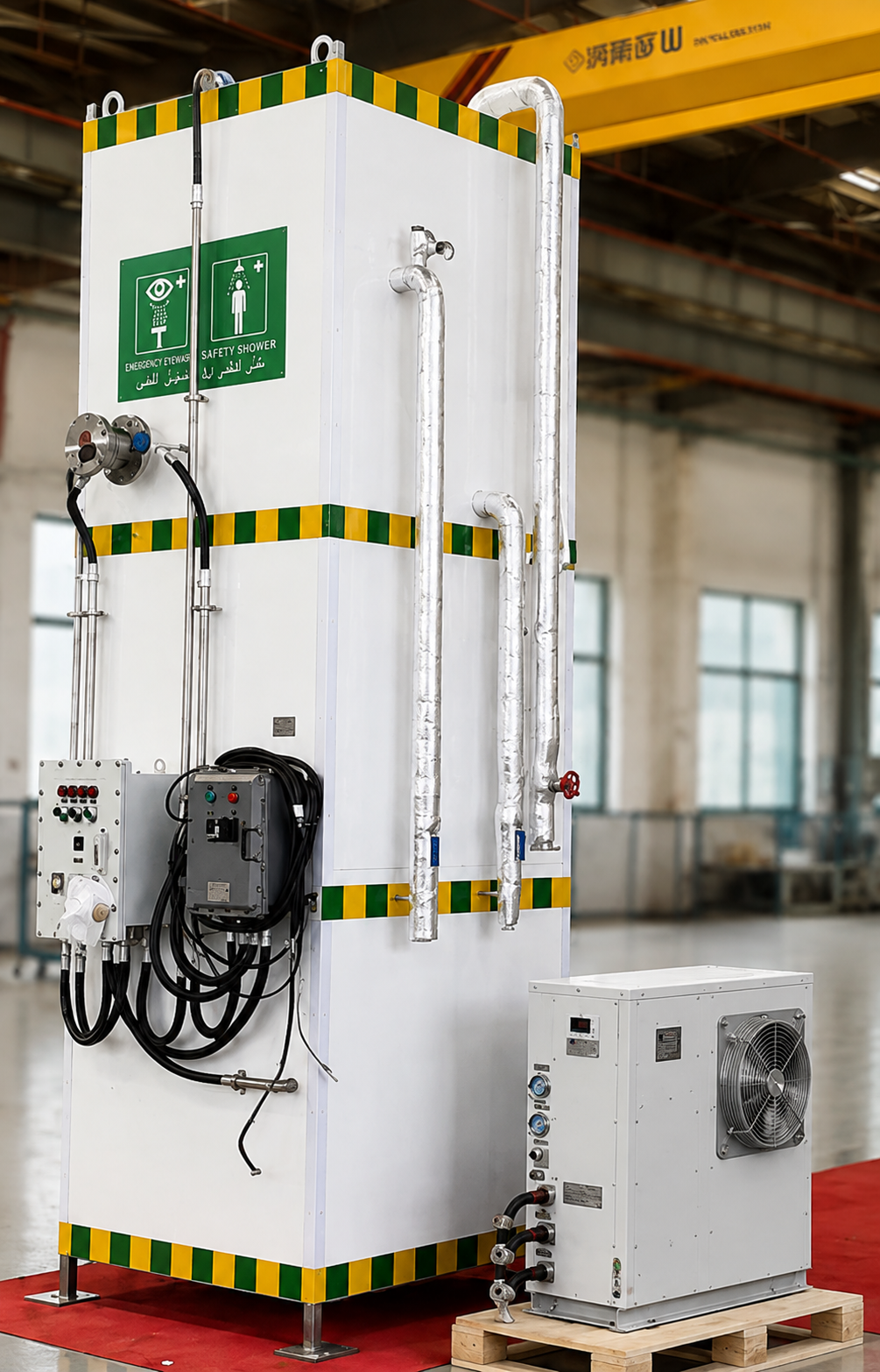

The DAAO6604-8 is a temperature-controlled, tank-fed emergency shower and eyewash enclosure engineered for hot-climate industrial environments where stored or incoming water temperatures may exceed the suitable range for emergency flushing.
An integrated 1500 L insulated water tank, water chiller and circulation system work together to control flushing-water temperature under high ambient conditions. The standard configuration is designed for ambient temperatures from +5°C to +55°C, with project-engineered configurations available for more demanding operating conditions.
The self-contained tank provides a dedicated emergency water reserve where a reliable tepid-water supply is unavailable or cannot be guaranteed. The shower and eyewash system is designed to deliver the required emergency flushing flow, while the integrated circulation and temperature-control system continuously manages stored-water conditions.
A bottom collection tray and dedicated drain connection provide controlled discharge of used flushing water. Internal lighting improves visibility during emergency operation, while optional audible/visual alarms, DCS/PLC signal interfaces, automatic water filling, and hazardous-area electrical packages can be integrated according to project requirements.
Available in AISI 304 or AISI 316L stainless steel, the DAAO6604-8 can be engineered for chemical, petrochemical, oil & gas, energy, mining, and other high-temperature industrial applications.
Hazardous-Area Configuration
Project-specific hazardous-area packages are available with explosion-protected electrical components, including alarm devices, control/interface panels, conduit, instrumentation, and associated electrical equipment.
ATEX / IECEx configurations available according to project hazardous-area classification.
Alarm & Control Integration
Local audible/visual alarm and remote signal interfaces can be integrated with shower and eyewash activation. Hazardous-area configurations are available with explosion-protected alarm devices, control panels, and signal interface equipment for connection to site DCS/PLC systems.
Project-Engineered Configurations
The DAAO6604-8 can be configured beyond the standard specification for demanding EPC applications.
HOT CLIMATE CONTROL & ALARM
Extended ambient-temperature configurations Local alarm + DCS / PLC interface
HAZARDOUS AREA UTILITY CONFIGURATION
ATEX / IECEx electrical packages Tank capacity · Voltage · Cooling capacity · Auto-fill
- 01 — Hot-Climate Operation up to +55°C
- Engineered for high-ambient-temperature industrial installations where stored flushing water is exposed to significant environmental heat gain.
- 02 — Active Water Cooling
- Integrated chiller controls stored water temperature to maintain suitable emergency flushing conditions.
- 03 — 1500L Self-Contained Water Reserve
- Provides stored emergency flushing water where a continuous tepid-water supply is unavailable or unreliable.

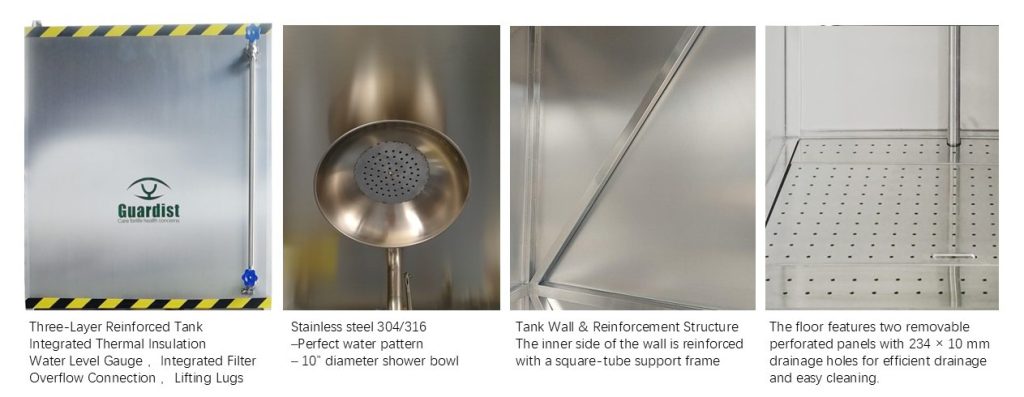

- 04 — Insulated Tank & Enclosure
- PUF insulation reduces heat gain and improves temperature-control efficiency under high ambient conditions.
- 05 — Integrated Drainage & Monitoring
- Bottom collection tray, drain connection, water-level indication, and temperature monitoring support safe operation and routine inspection.
- 06 — Alarm & Project Integration
- Optional audible/visual alarm, DCS/PLC signal interface, hazardous-area electrical configuration, and automatic water filling.
Related Engineering Case Studies
See how chilled tank-fed emergency shower systems are applied in hot-climate industrial projects.
View Case Studies →
Optional Accessories： Explosion-proof or non-explosion-proof chiller unit (suitable for hot climates);Immersion heater (suitable for cold climates);Explosion-proof or non-explosion-proof space heater; Brass/stainless steel pressure regulator; Side and rear panel insulation / water tank insulation; Water temperature sensor; Water level sensor; Spring-loaded door; Drainage channel and grating;
