DAAO6602 Curtain-Enclosed Emergency Shower & Eyewash System
The DAAO6602 is a piped emergency shower and eye/face wash system combining a surrounding curtain with an integrated collection tray for industrial emergency flushing applications.

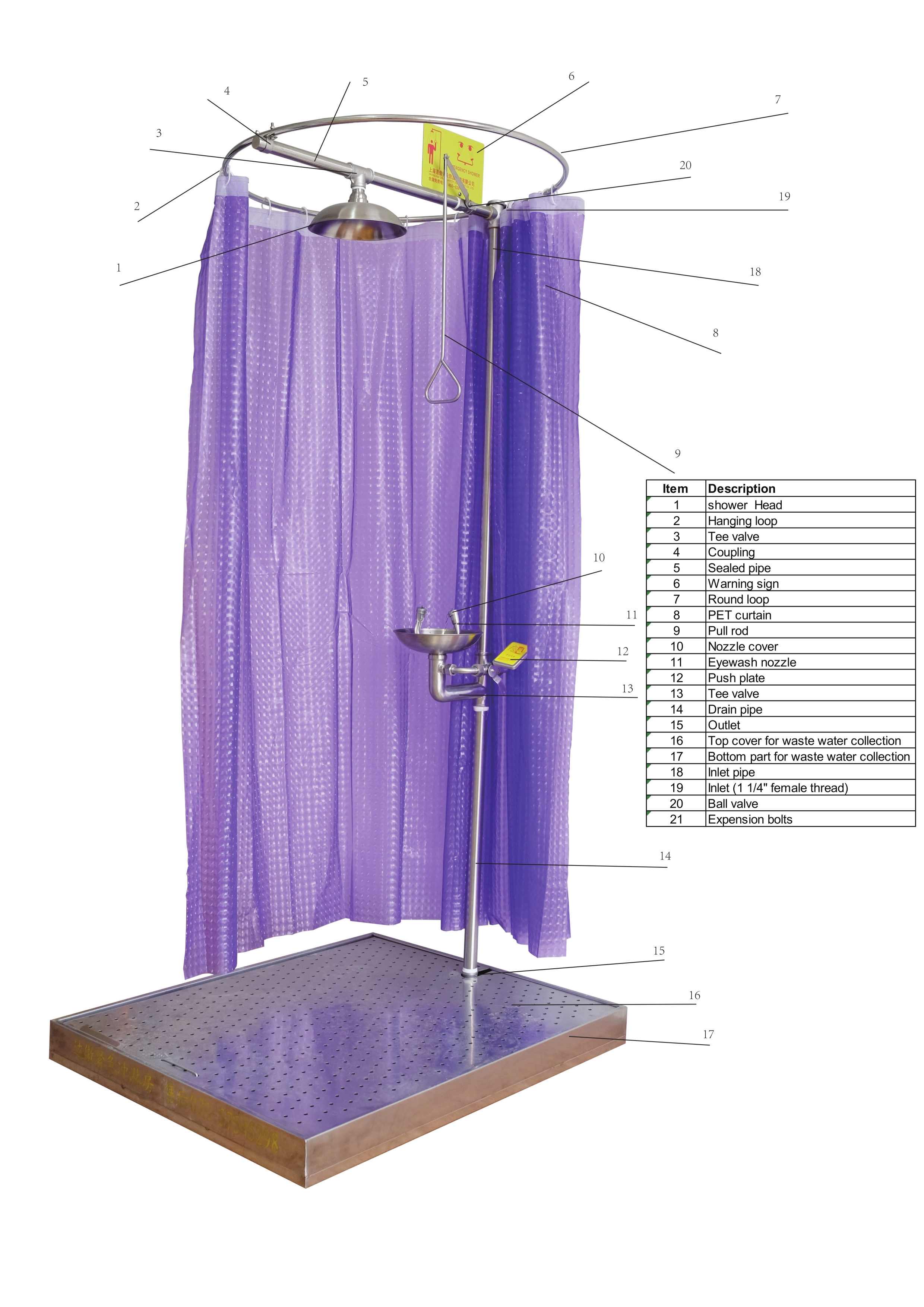

The stainless steel structure integrates an emergency shower, eye/face wash, visual screening curtain, and bottom collection tray within a single station. The curtain provides screening during emergency use and helps reduce splash beyond the immediate flushing area, while the tray collects discharged flushing water and provides a dedicated drainage connection.
When connected to a site flushing-water supply within the specified operating conditions, the system provides a shower flow of ≥75.7 L/min and eye/face wash flow of ≥11.4 L/min.
The DAAO6602 is available in AISI 304 or optional AISI 316L stainless steel, with project-specific options for dimensions, selected component materials, alarms, and remote signaling.
- 01 — Piped Emergency Flushing
- Designed for connection to a continuous site flushing-water supply with sufficient pressure and flow for emergency shower and eye/face wash operation.
- 02 — Visual Screening Curtain
- Surrounding curtain provides visual screening during emergency use and helps reduce splash beyond the immediate flushing area.
- 03 — Integrated Collection Tray
- The base tray collects discharged flushing water and incorporates a dedicated drainage connection.
- 04 — Emergency Shower & Eye/Face Wash
- Provides ≥75.7 L/min shower flow and ≥11.4 L/min eye/face wash flow under the specified supply conditions.
- 05 — Stainless Steel Construction
- Available in AISI 304 or optional AISI 316L stainless steel for corrosion resistance in industrial environments.
When to Select DAAO6602
Suitable where splash containment, drainage and visual screening are required, but a fully enclosed rigid emergency shower cabin is unnecessary.
