Description
Enclosed emergency shower and eyewash system for connection to a continuous site flushing-water supply.

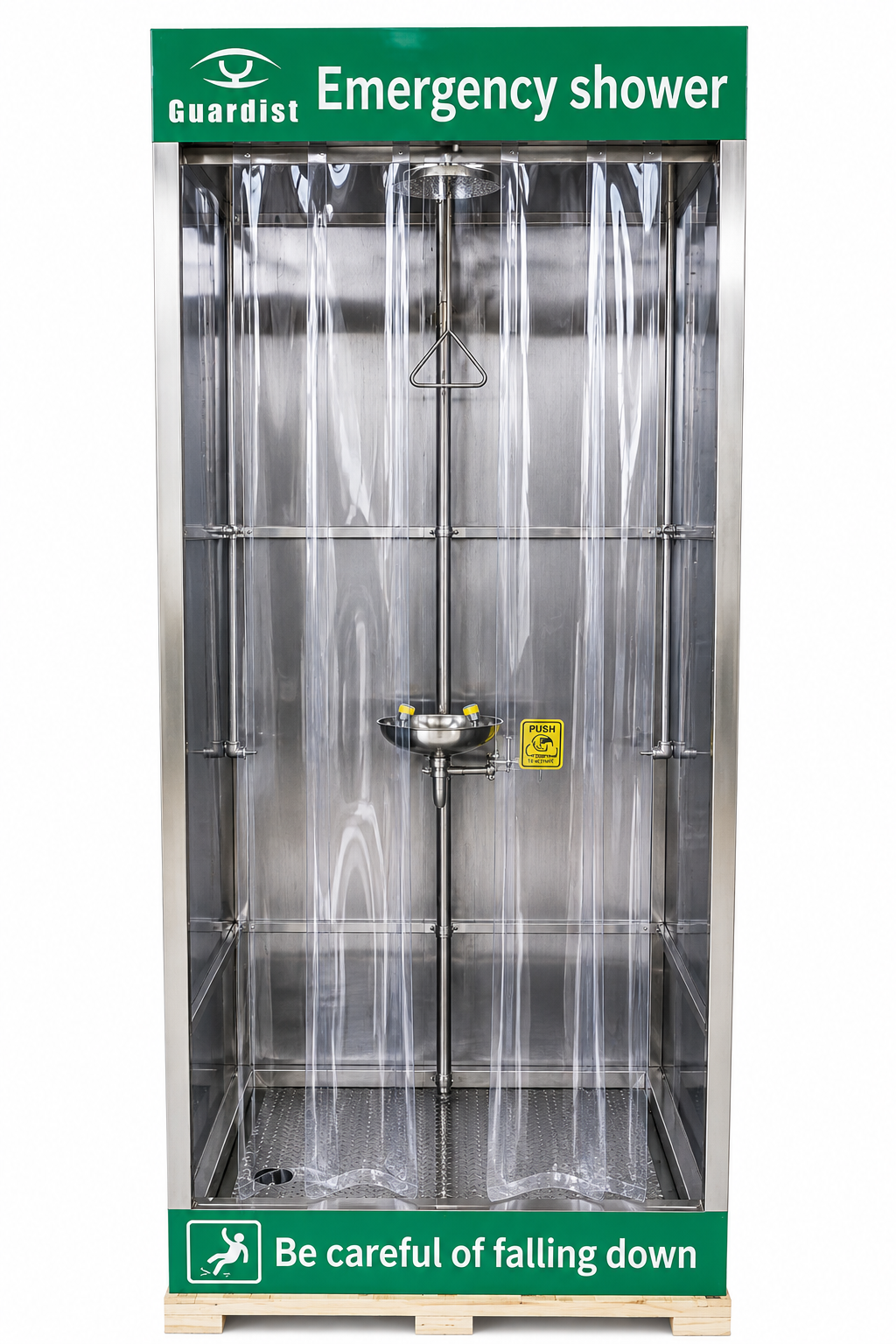

The DAAO6604 is an enclosed emergency shower and eye/face wash system designed for connection to a continuous site flushing-water supply.

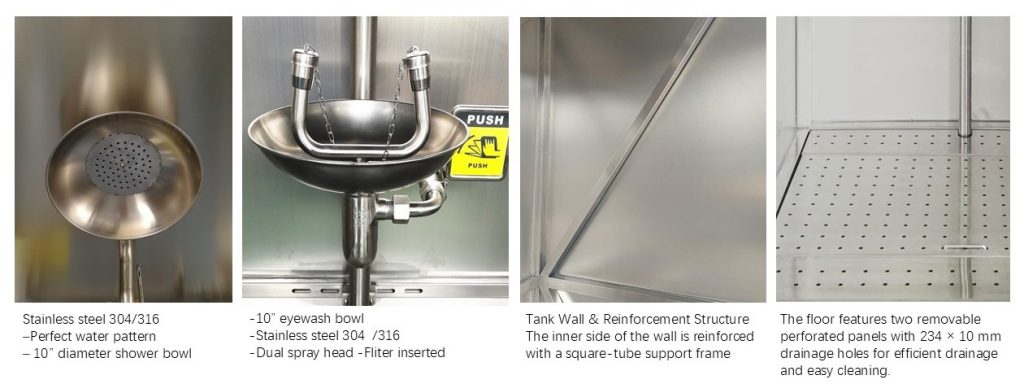

The stainless steel enclosure integrates an emergency shower, eye/face wash, bottom collection tray and dedicated drainage connection into a compact safety station, providing a defined emergency flushing area while helping contain and direct discharged water.
The system provides a shower flow of ≥75.7 L/min and eye/face wash flow of ≥11.4 L/min when supplied at the specified operating conditions.
Available in AISI 304 or optional AISI 316L stainless steel, the DAAO6604 can be configured with local audible/visual alarms, DCS/PLC signal interfaces, wireless remote alarms, inlet booster pumps, drainage pumps, hazardous-area electrical packages, and customized dimensions according to project requirements.
For installations without a reliable continuous water supply, tank-fed enclosure systems are available separately.
Integrated Collection Tray & Drainage
The enclosure base incorporates a collection tray and dedicated drain outlet to contain and direct discharged flushing water.
- 01 — Stainless Steel Enclosure
- AISI 304 or optional AISI 316L enclosure provides a defined emergency flushing area with durable, corrosion-resistant construction for industrial environments.
- 02 — Integrated Collection Tray & Drainage
- The enclosure base incorporates a collection tray and dedicated drain outlet to contain and direct discharged flushing water.
- 03 — Continuous Piped Water Supply
- Designed for connection to a continuous site flushing-water supply with sufficient pressure and flow for emergency shower and eye/face wash operation.
- 04 — Compliant Flushing Performance
- Delivers ≥75.7 L/min for the emergency shower and ≥11.4 L/min for the eye/face wash under the specified supply conditions.
- 05 — Alarm & Control Integration
- Optional audible/visual alarms, DCS/PLC signal interfaces, and wireless remote alarms can be linked to equipment activation for local and remote notification.
- 06 — Project-Engineered Configuration
- Enclosure material and dimensions, inlet boosting, drainage pumping, electrical systems, and hazardous-area configurations can be engineered to project requirements.
Explore Alternative System Configurations
Choose the system configuration that best matches your site conditions and water-supply requirements.
Need stored water?
1500L Tank-Fed System →
Need a simpler screened configuration?
Curtain & Collection Tray System →
Optional Accessories： Explosion-proof or non-explosion-proof chiller unit (suitable for hot climates);Immersion heater (suitable for cold climates);Explosion-proof or non-explosion-proof space heater;Brass/stainless steel pressure regulator;Side and rear panel insulation / water tank insulation;Water temperature sensor;Water level sensor;Spring-loaded door; Drainage channel and grating;
