Description:
The DAAO6613-D is a stainless steel combination emergency shower and eye/face wash with ABS coating and a PVC eyewash bowl lid, designed for immediate flushing where personnel may be exposed to hazardous or corrosive substances.
The floor-mounted unit integrates a high-flow emergency shower and eye/face wash in a single piped system, delivering ≥75.7 L/min shower flow and ≥11.4 L/min eye/face wash flow under the specified water-supply conditions.

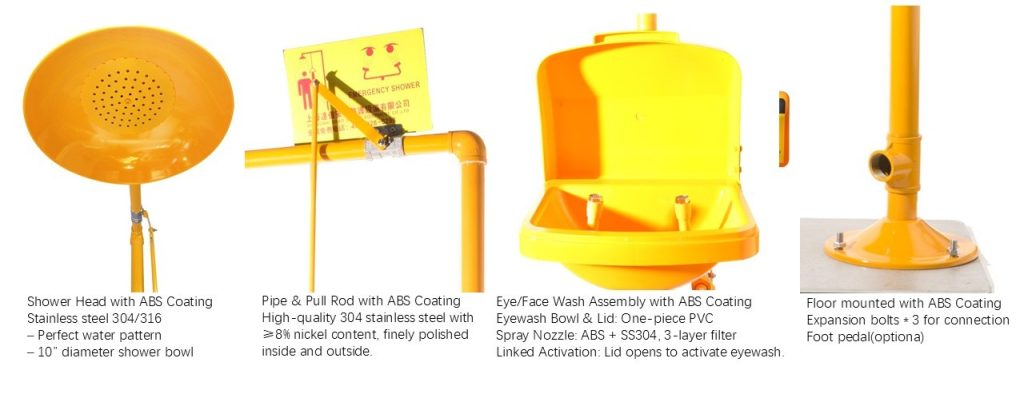

The PVC bowl lid protects the eyewash bowl and spray nozzles from dust and contaminants and is mechanically linked to the eyewash valve, allowing the eyewash to activate automatically when the lid is opened. The ABS-coated stainless steel construction provides additional surface protection for demanding industrial environments.
Applications
Chemical · Petrochemical · Oil & Gas · Pharmaceutical · Semiconductor · Manufacturing
01 — Controlled Laminar Eye/Face Wash Flow
The eye/face wash is designed to produce a balanced laminar flushing pattern, with an optional flow-control valve to regulate water flow for gentle, stable and effective irrigation of the eyes and face.
02 — High-Flow Emergency Shower
The overhead shower delivers ≥75.7 L/min under the specified supply conditions, providing rapid whole-body flushing following hazardous exposure.
03 — Stainless Steel Construction
AISI 304 standard with optional AISI 316L for demanding industrial environments.
04 — Factory Water & Pressure Tested
Assembled units tested before shipment to verify operation and flushing performance.
05 — High-Visibility Emergency Identification
Universal emergency signage and high-visibility markings support rapid equipment identification.
06 — Standardized Piping Connections
1-1/4″ NPT supply and drain connections, with project-specific connection options available.
Optional Engineering Configurations
Pressure Reducing Valve
Optional pressure reducing valve (PRV) regulates high or fluctuating inlet pressure to maintain a controlled downstream pressure suitable for emergency shower and eyewash operation.
Anti-Scald Protection Valve
Optional anti-scald valve provides protection where excessive supply-water temperature may occur, helping prevent potentially overheated water from reaching the emergency flushing equipment.
Piping Connections
Threaded, flanged, and project-specific connection configurations are available to match site piping and project requirements.
Alarm & Monitoring
Optional activation monitoring and alarm configurations include flow switch, local audible/visual alarm, dry-contact output, and DCS/PLC interface.
Hazardous-Area Configuration
Explosion-protected alarm, monitoring, and electrical components can be configured according to the project hazardous-area classification.
