Description:

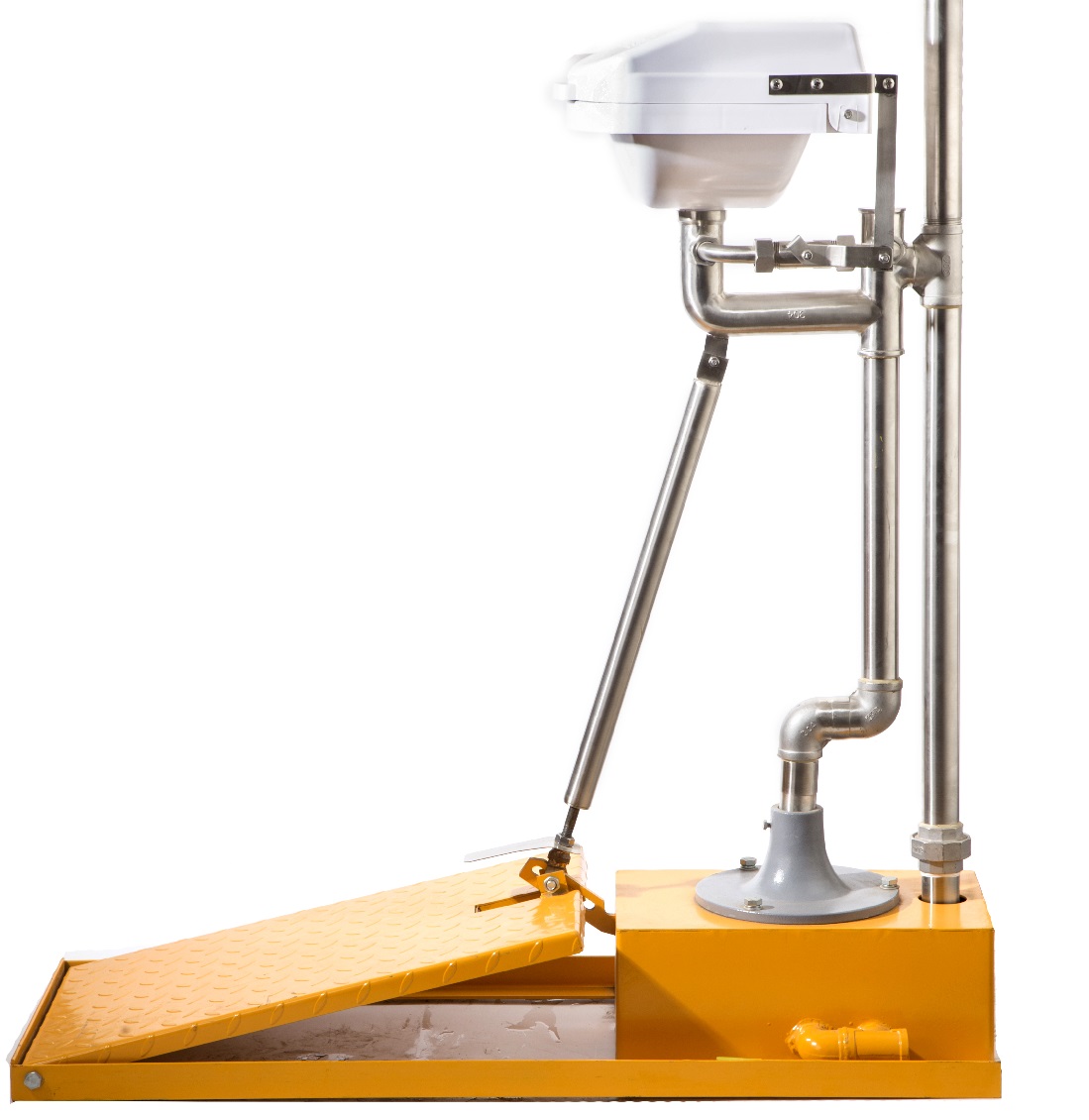

The DAAO6615-D is a freeze-protected combination emergency shower and eye/face wash station featuring an automatic emptying system and protective eyewash cover lid, designed for outdoor industrial applications where residual water inside piping may create a risk of freezing.
The unit integrates an emergency shower and eye/face wash in a single floor-mounted system, providing immediate flushing access for personnel exposed to hazardous chemicals, corrosive substances, and other industrial contaminants.
Featuring an auto-emptying drainage system, the DAAO6615-D automatically removes residual water from the internal piping after use, helping reduce the risk of pipe freezing during winter conditions and minimizing potential water deterioration caused by stagnant water.
Constructed from carbon steel with a durable ABS protective coating, the unit provides enhanced environmental protection for outdoor applications. The eyewash cover lid helps protect the bowl and spray nozzles from dust and contaminants when not in use, while the non-slip foot pedal design enables stable hands-free emergency activation.
The self-supporting structure with four fixing bolts provides secure installation and improved stability for outdoor industrial environments.
01 — Automatic Emptying Freeze Protection
The internal piping automatically drains residual water after use, helping protect the system from freezing and reducing stagnant water issues in cold environments.
02 — Protective Eyewash Cover Lid
The cover lid is mechanically linked with the eyewash valve, allowing automatic activation when opened while protecting the spray nozzles from contamination.
03 — Combination Emergency Shower & Eyewash
Integrated shower and eye/face wash provide immediate flushing for body, eye, and face exposure incidents.
04 — ABS Protective Coating
Carbon steel construction with ABS coating provides enhanced corrosion resistance and durability for outdoor industrial applications.
05 — Foot Pedal Hands-Free Activation
A non-slip foot pedal allows stable and convenient hands-free operation during emergency response.
06 — Stable Self-Supporting Installation
The freestanding structure with four fixing bolts provides additional stability where permanent anchoring is required.
Optional Engineering Configurations
Pressure Reducing Valve
Optional pressure reducing valve (PRV) regulates high or fluctuating inlet pressure to maintain a controlled downstream pressure suitable for emergency shower and eyewash operation.
Anti-Scald Protection Valve
Optional anti-scald valve provides protection where excessive supply-water temperature may occur, helping prevent potentially overheated water from reaching the emergency flushing equipment.
Piping Connections
Threaded, flanged, and project-specific connection configurations are available to match site piping and project requirements.
Alarm & Monitoring
Optional activation monitoring and alarm configurations include flow switch, local audible/visual alarm, dry-contact output, and DCS/PLC interface.
Hazardous-Area Configuration
Explosion-protected alarm, monitoring, and electrical components can be configured according to the project hazardous-area classification.
Capable of Self-standing and have 4 bolts for extra fix needed
Auto emptying the water in the pipe after use
Protect the pipe from freeze in the winter and prevent the potential water deterioration
Material Carbon steel + ABS coating.
Non-slip design for the foot pedal
