Description
For sites where a reliable emergency flushing-water supply cannot be guaranteed.
The DAAO6604-6 is a self-contained, tank-fed emergency shower and eyewash enclosure designed for industrial sites where continuous mains water availability, pressure, or flow cannot be reliably guaranteed.

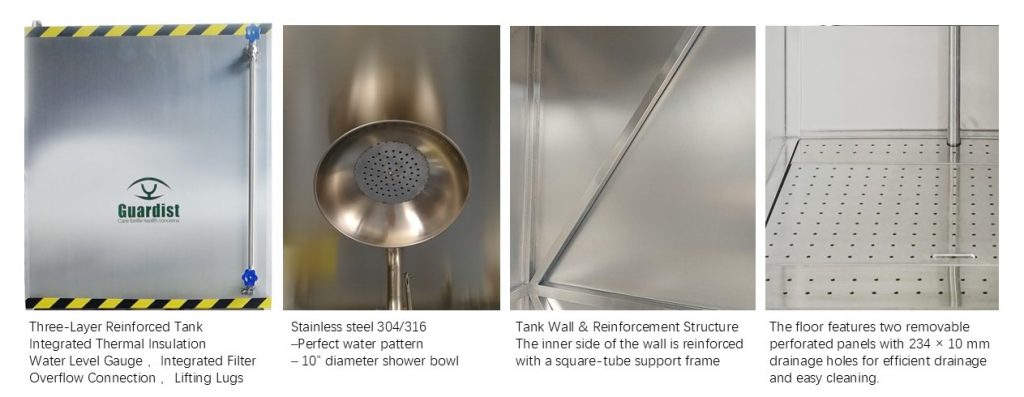

An integrated 1500 L overhead water tank provides a dedicated reserve of flushing water, while the insulated stainless steel enclosure protects the shower, eyewash, piping, and associated components within a complete system.
The system provides a shower flow of ≥75.7 L/min and eyewash flow of ≥11.4 L/min. PUF insulation helps reduce heat transfer between the stored water and surrounding environment, while water-level and temperature monitoring can be incorporated to support routine inspection and system readiness.
Available in AISI 304 or optional AISI 316L stainless steel, the DAAO6604-6 can also be configured with automatic water filling, alarm and remote signal interfaces according to project requirements.
For sites exposed to extreme heat or continuous freezing conditions, actively chilled or heated tank-fed configurations are available.
- 01 — 1500L Self-Contained Water Reserve
- Integrated overhead storage provides a dedicated emergency water source where continuous mains water supply, pressure, or flow cannot be guaranteed.
- 02 — Emergency Shower & Eyewash
- Designed to provide ≥75.7 L/min shower flow and ≥11.4 L/min eyewash flow for emergency decontamination.
- 03 — Insulated Enclosure
- Stainless steel enclosure with PUF insulation reduces external thermal influence and protects internal piping and equipment.
- 04 — Water Level & Temperature Monitoring
- Allows operators to verify stored-water conditions and system readiness during routine inspection.
- 05 — Integrated Lighting & Drainage
- Internal lighting improves visibility during emergency use, while the collection and drainage arrangement provides controlled discharge of flushing water.
- 06 — Configurable System Platform
- Heating, cooling, automatic filling, alarms, remote signaling, hazardous-area electrical equipment, and other functions can be added according to project conditions.
Climate-Specific Tank-Fed Systems
For extreme ambient conditions, select an actively heated or chilled configuration designed for the required site temperature conditions.
Heated Tank-Fed System — Extreme Cold →
Chilled Tank-Fed System — Hot Climate →
Optional Accessories： Explosion-proof or non-explosion-proof chiller unit (suitable for hot climates);Immersion heater (suitable for cold climates);Explosion-proof or non-explosion-proof space heater;Brass/stainless steel pressure regulator;Side and rear panel insulation / water tank insulation;Water temperature sensor;Water level sensor;Spring-loaded door; Drainage channel and grating;
