Description:

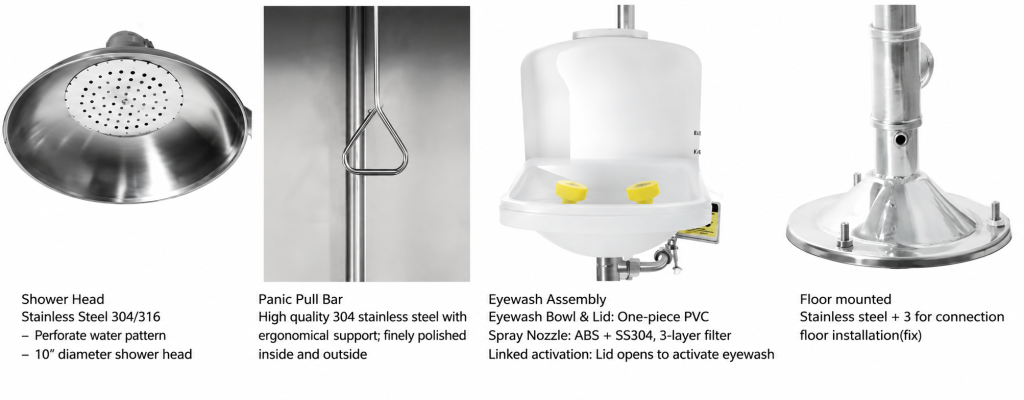

The DAAO6610-D is a stainless steel combination emergency shower and eye/face wash equipped with a PVC eyewash bowl lid for added protection of the eyewash basin and spray area.
The floor-mounted unit integrates a high-flow emergency shower and eye/face wash in a single piped system, delivering ≥75.7 L/min shower flow and ≥11.4 L/min eye/face wash flow under the specified water-supply conditions.
The eyewash bowl lid is linked to the eyewash valve, allowing the eye/face wash to activate automatically when the lid is opened for quick emergency operation.
Constructed from AISI 304 stainless steel, with AISI 316L available as an option, the DAAO6610-D provides a durable configuration for industrial emergency flushing applications and can be adapted to project-specific piping and site requirements.
Applications
Chemical · Petrochemical · Oil & Gas · Pharmaceutical · Semiconductor · Manufacturing
01 — Controlled Laminar Eye/Face Wash Flow
The eye/face wash is designed to produce a balanced laminar flushing pattern, with an optional flow-control valve to regulate water flow for gentle, stable and effective irrigation of the eyes and face.
02 — High-Flow Emergency Shower
The overhead shower delivers ≥75.7 L/min under the specified supply conditions, providing rapid whole-body flushing following hazardous exposure.
03 — Stainless Steel Construction
AISI 304 standard with optional AISI 316L for demanding industrial environments.
04 — Factory Water & Pressure Tested
Assembled units tested before shipment to verify operation and flushing performance.
05 — High-Visibility Emergency Identification
Universal emergency signage and high-visibility markings support rapid equipment identification.
06 — Standardized Piping Connections
1-1/4″ NPT supply and drain connections, with project-specific connection options available.
Optional Engineering Configurations
Pressure Reducing Valve
Optional pressure reducing valve (PRV) regulates high or fluctuating inlet pressure to maintain a controlled downstream pressure suitable for emergency shower and eyewash operation.
Anti-Scald Protection Valve
Optional anti-scald valve provides protection where excessive supply-water temperature may occur, helping prevent potentially overheated water from reaching the emergency flushing equipment.
Piping Connections
Threaded, flanged, and project-specific connection configurations are available to match site piping and project requirements.
Alarm & Monitoring
Optional activation monitoring and alarm configurations include flow switch, local audible/visual alarm, dry-contact output, and DCS/PLC interface.
Hazardous-Area Configuration
Explosion-protected alarm, monitoring, and electrical components can be configured according to the project hazardous-area classification.
